Siemens mini turning machine CNC CK450 lathe machine

Shaanxi Sanmore Industry and Trade Co., Ltd.
Contact Now

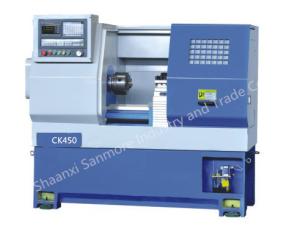

Siemens mini turning machine CNC CK450 lathe machine

  • 1
  • 2
  • 3

Brand Name : Sanmore

Model Number : CK450

Place of Origin : Shaanxi

MOQ : 1 Set

Payment Terms : T/T, L/C

Supply Ability : 50 sets/per month

Delivery Time : about two months

Packaging Details : Wooden case

Contact Now

Specifications & Model CK450
Max. swing dia. over bed Φ450mm
Max. swing over cross slide Φ190mm
Spindle head type A2-6
Dia. of spindle bore Φ48 mm
Through-hole diameter of drawn pipe Φ40mm
X/Z axis repeat positioning accuracy 0.01mm
Max travel of X axis 300 mm
Max travel of Z axis 430 (optional 750mm)
X axis rapid feed 5m/min
Z axis rapid feed 10m/min
Maximum speed of spindle 150-2000 r/min
Tailstock quill diameter Φ 60mm
Tailstock quill travel 100mm
Tailstock quill taper Morse No.4
Type of cutter frame

LDB4 Series electrical turrets

Main motor power (frequency conversion) 5.5kw
Machine overall size 1960*1300*1700mm
Machine weight 1400kg

Quality Siemens mini turning machine CNC CK450 lathe machine wholesale

Siemens mini turning machine CNC CK450 lathe machine Images
